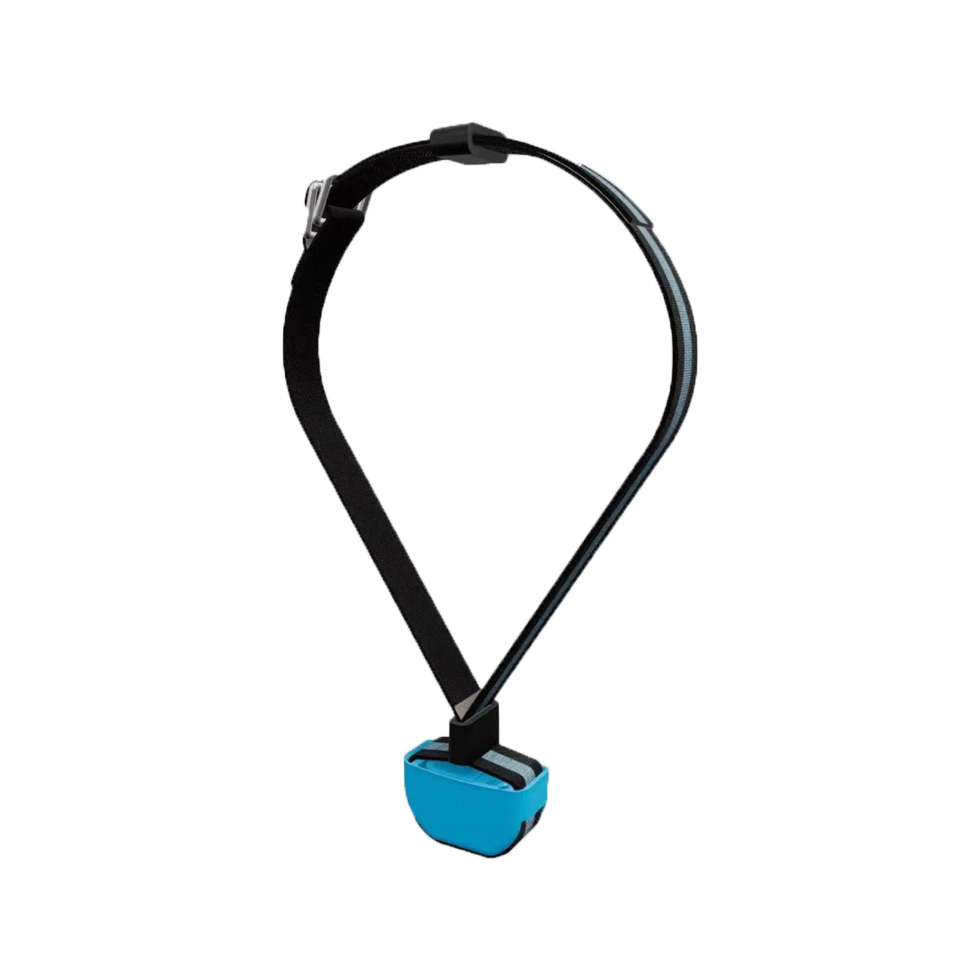

IoT Based G2 Livestock GPS Collar

LoRaWAN Compliant, LTEM and LTE Cat1 Optional
Build-in pedometer, temperature and humidity sensor
Communication range: 5~10KM Los, 1~3KM in dense environment
Low power consumption, battery life as long as 3 years @1 location per hour
IP67 rugged housing, compact size 110.5*48.2*55.5mm(Weight 290g)
Extension relay function: Collect and forwarder the data of rumen bolus to the gateway and platform

Description

GA5067 is a LoRa-based (LTE cat1, LTEM optional) GPS tracking device for livestock tracking with a 19000mah Li- SOCl2 battery. The collar is programmed wirelessly by the network server. can control how often GPS location data are collected, and can also remotely command program changes to the temperature & humidity data transmission interval.

Specification

Parameters	Specification
Product name	G2 livestock GPS Collar
Model	GA5067
MCU	BLE SoC, 64MHz, RAM, >32KB SRAM, Flash:>512KB
Modulation	LoRa, LTEM, LTE cat1 optional
LoRa Band	ISM band CN470Mhz, 868~928MHz，Optional
LTEM/LTE Cat1 band	LTE-TDD:B34/B38/B39/B40/B41，LTE-FDD:B1/B3/B5/B8
Geolocation	GPS/BDS for outdoor location, BLE for indoor location (optional).
Location accuracy	GPS:10 meters CEP, BLE: about 5 meters
Temperature & humidity accuracy	Temperature: ±0.3℃ ；Humidity ±3%RH
Switch	Build in hall sensor for switch
Accelerometer	3-axi accelerometer, Monitoring the movement/activity
LED indicator	Bluetooth and Green LED indicator
Battery Specs	19000mah Li − SOCl2 battery, replaceable
Battery life	3 year@1 GPS location per hour
Operation temperature	-40~+80℃
Storage Temperature	10℃ ~ +45℃, the recommended storage temperature is under +30℃
ESD protection	Support
Dimensions	110.548.255.5mm (Weight 290g)
Communication range	5~10KM LoS 1~3KM in dense environment
Protection Requirements	IP67
Collar size	5 cm wide Industrial Neoprene Belting
Software protection	Build in watchdog
Upgrade	Support BLE OTA upgrade
Alarm	Support Lower power alarm, an alarm is sent to platform once the battery is less than 10%
Relay function	Collect and forwarder the data of rumen bolus to the gateway and platform, which can greatly extend the bolus communication

Application

The LoRaWANTM Based livestock tracking system is capable of tracking and detecting anomalies in livestock behavior at any time. Ranchers are able in real-time locate their livestock to better manage the herd and reduce theft.

Cattle

Camels

Horse

Sheep

Deer
